Product Description
NEW! Replaces former BDL168
Block Detector, 16 Sections, includes PS14 Power Supply

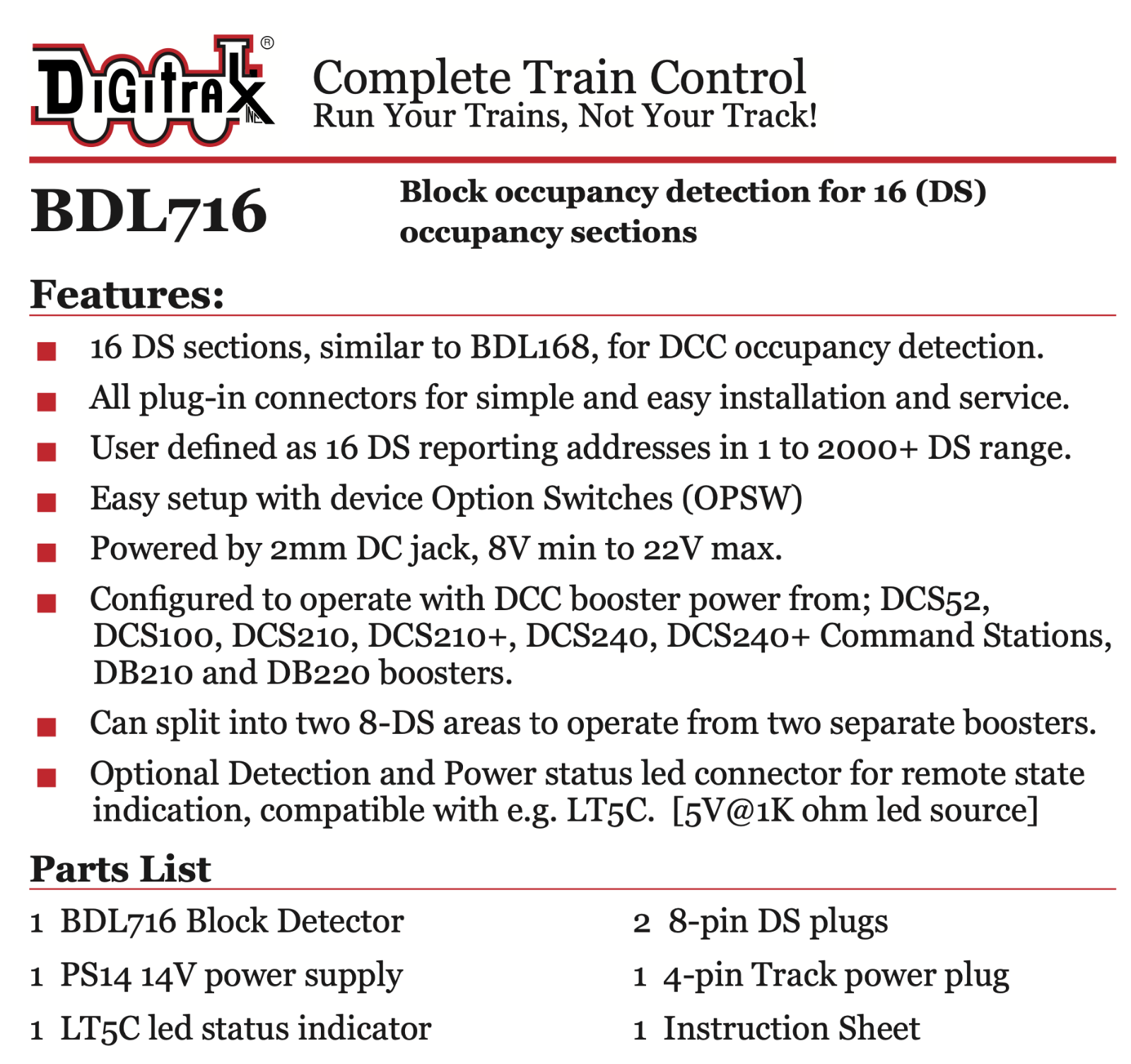

Features:
Block occupancy detection for 16 (DS) occupancy sections
▪ 16 DS sections, similar to BDL168, for DCC occupancy detection.
▪ All plug-in connectors for simple and easy installation and service.
▪ User defined as 16 DS reporting addresses in 1 to 2000+ DS range.
▪ Easy setup with device Option Switches (OPSW)
▪ Powered by 2mm DC jack, 8V min to 22V max.
▪ Configured to operate with DCC booster power from; DCS52, DCS100, DCS210, DCS210+, DCS240, DCS240+ Command Stations, DB210 and DB220 boosters.

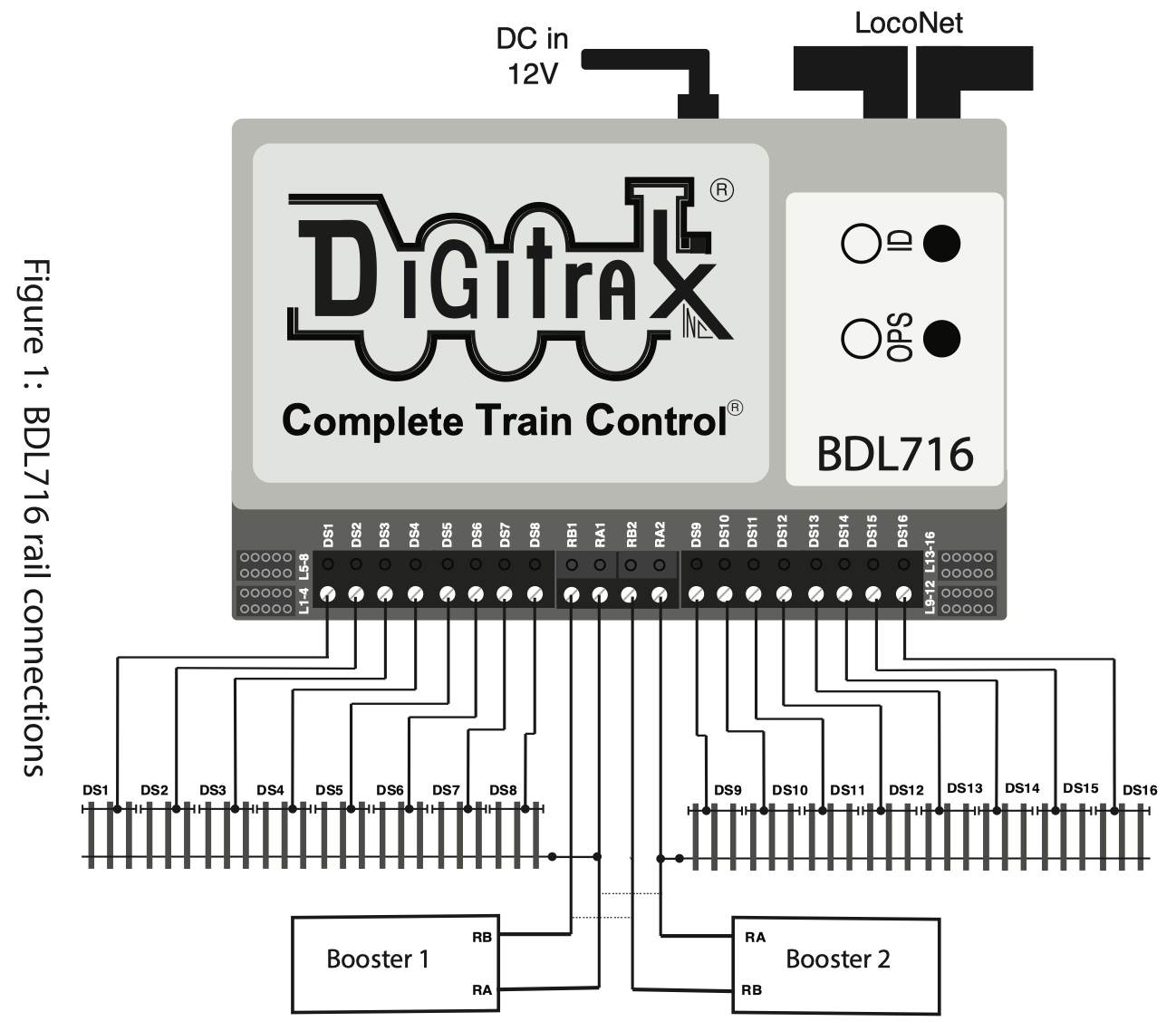

▪ Can split into two 8-DS areas to operate from two separate boosters.
▪ Optional Detection and Power status led connector for remote state indication, compatible with e.g. LT5C. [5V@1K ohm led source]
Parts List
- 2 8-pin DS plugs
- 1 4-pin Track power plug
- 1 Instruction Sheet

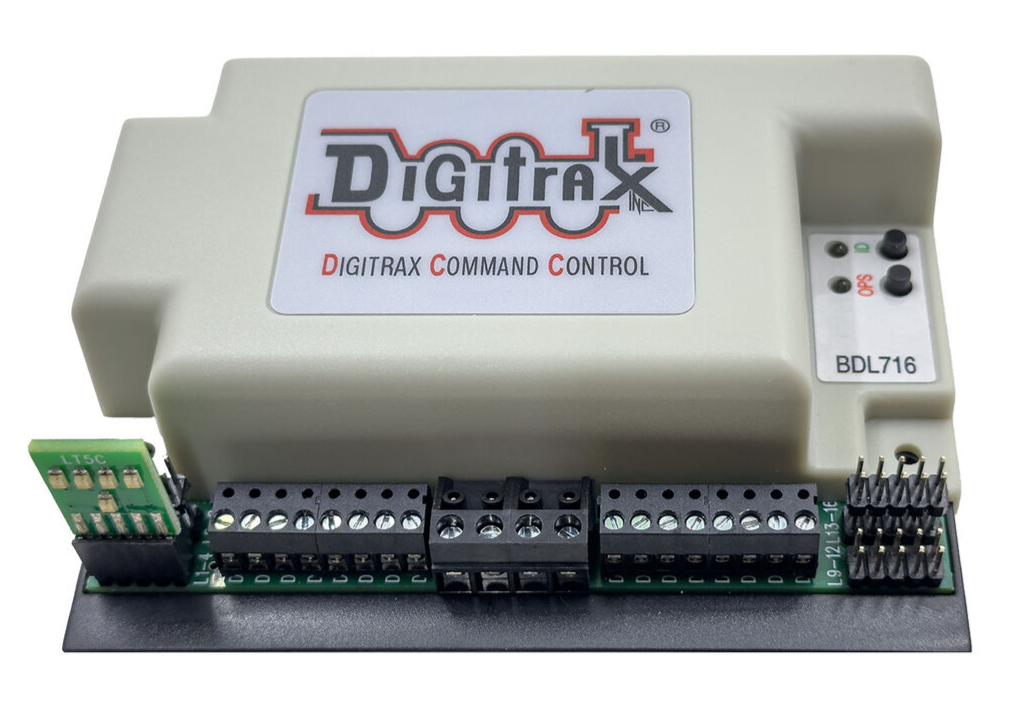

- 1 BDL716 Block Detector
- 1 PS14 14V power supply
- 1 LT5C led status indicator
▪Digitrax “No Worries” Warranty. Warranty by manufacturer. Visit their website for details.
