Product Description

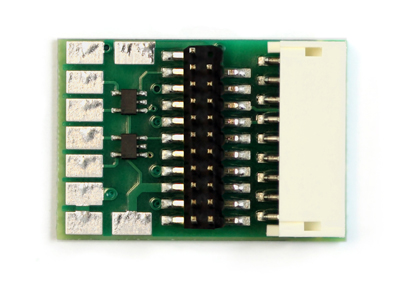

Easily adapt any SoundTraxx 21PNEM decoder to an NMRA 9-Pin DCC "quick plug" equipped model. It can also be used with a SoundTraxx 9-Pin JST Power Harness (P.N. 810069) to create a universal-style decoder. Supports up to 8 lighting functions and has solder pads for CurrentKeeper, speaker connections, and extra lighting outputs.
Specifications:
- Dimensions: 22.5 x 16 x 7.5mm
- Function Outputs: 8
- Max. Function Current: 100mA (each output)
- CurrentKeeper Solder Pads: Yes
- Speaker Solder Pads: Yes
