Product Description
-

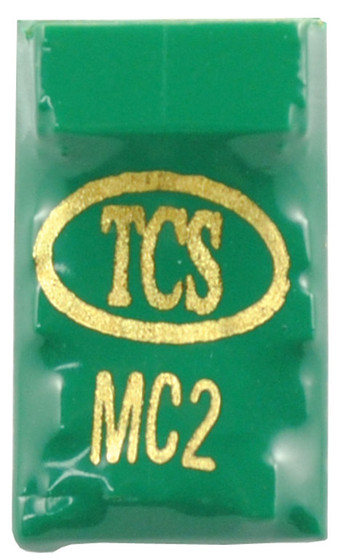

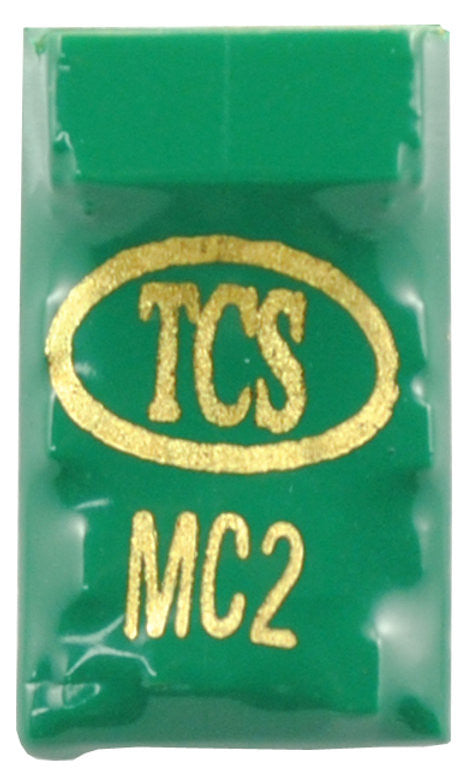

The MC2 is a 2-function HO and N scale hard-wire decoder with a 7-pin JST harness. Harness is included in this package.
-
The MC2 is designed for use in locomotives where a T-series is too large, but you do not want a permanent hard-wire solution as with the M-series.
- Interface Type: Hard-Wire / Direct-Plug (7-Pin JST)
- Dimensions (L x W x H): 0.709" x 0.419" x 0.191" or 18.02mm x 10.63mm x 4.85mm
- Scale: HO Scale N Scale
- Continuous/Peak: 1.0/2.0 Amp
- Total Functions: 2
- Function Rating: 100 mA
- 12V Outputs: 2
The MC2 is a 2-function HO and N scale hard-wire decoder with a 7 pin JST socket. The MC2 is designed for use in locomotives where a T-series or M-Series decoder is too large.
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
All information provided by TCS.
