Product Description

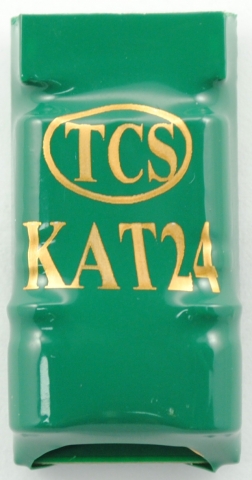

This decoder is a T4 decoder with built in Keep-Alive™, and will keep your locomotive operating for 6-15 seconds without power (As a result of dirty track, poor contacts, etc.).
This decoder is physically larger than a T-series decoder, but features the same operational characteristics.
This decoder is compatible with any locomotive which uses the JST-9 interface.
Keep-Alive®:
Included on-board for smooth, stutter-free operation.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specs:
Interface Type: Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 1.315" x 0.65" x 0.35" or 33.4mm x 16.5mm x 8.9mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 4
Function Rating: 100 mA
12V Outputs: 4
One Year Goof Proof Warranty
All TCS decoders are covered by a one year goof proof warranty. Please return in a small box.
You MUST register the failed decoder on their website at tcsdcc.com/warranty
Follow the instructions on the website before returning any decoders to TCS. TCS requires all warranty claims be sent to them directly
