TCS 1402 LL8-LED HO Life-Like Proto 2000 TRAIN CONTROL SYSTEMS

MSRP: $58.95
$47.19
(You save $11.76 )
Write a Review
UPC:
879508003703
Shipping:
Calculated at Checkout

Product Description

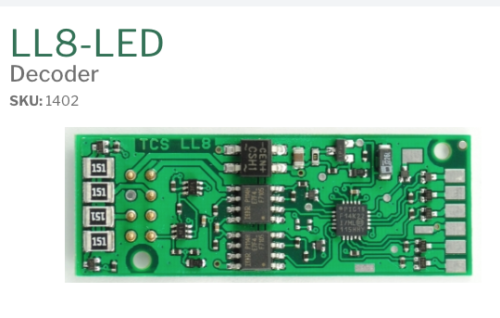

  • The LL8-LED is a 8-function direct-plug decoder designed specifically to meet the needs of LifeLike/Proto 2000 models.
  • The LL8-LED can quickly be swapped for the existing DC board in your model, making the installation process fast and simple.
  • The LL8-LED has a built-in circuit for LED's used for the forward and reverse headlights. The remaining 6 lighting functions on the LL8-LED are rated for 12V.

Interface Type: Direct-Plug (8-Pin NMRA)

Dimensions (L x W x H): 1.989" x 0.694" x 0.134" or 50.51mm x 17.64mm x 3.4mm

  • Scale: HO Scale
  • Continuous/Peak: 1.0/2.0 Amp
  • Total Functions: 8
  • Function Rating: 100 mA
  • 12V Outputs: 6
  • LED Outputs: 2

IMPORTANT! If your model uses 1.5V incandescent lighting from the factory and you do not plan to upgrade to LED headlight(s) use the LL8 (in our store)

  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
  • RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.
  • LED Support: This product does not require external resistors when connecting LED's.
  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
  • Airwire™ Compatible: Fully compatible with Airwire™ operation.
  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
