Product Description

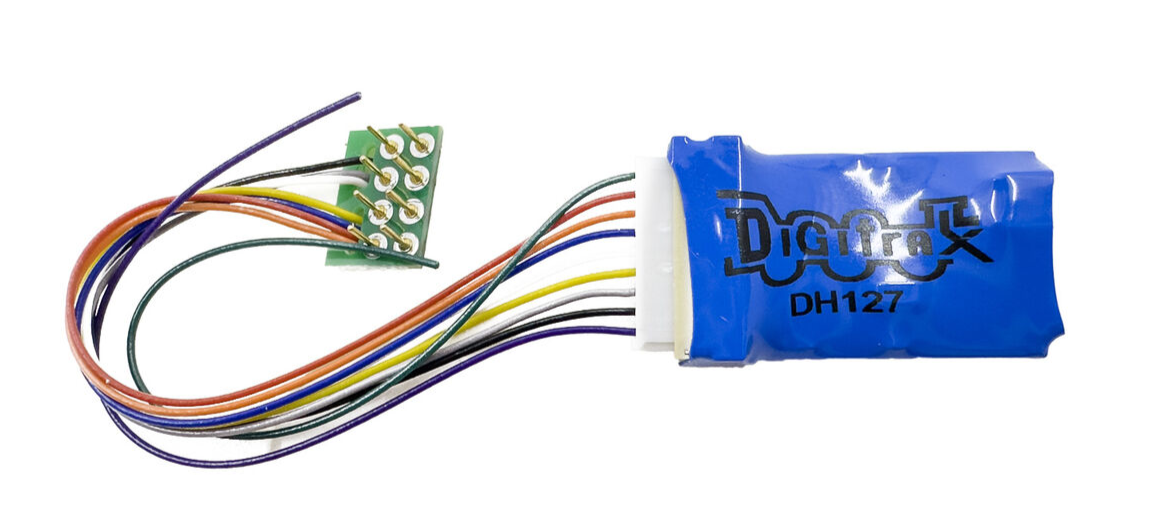

Economy Wired Decoder with medium harness - NEW - replaced DH126P
- Fits many HO locomotives
- Fits many 8-pin Medium Socket DCC-Ready HO locomotives
- Digitrax 9-Pin Socket and P-Harness
- Medium Plug with approximately.3.2" wires
- 1.0 Amp/2 Amps Peak
- 2 FX7 Functions, 200ma Output
Features:
▪ Digitrax Easy Connect 9-Pin Socket for track, motor and function control, allows decoder to be moved between different locomotive interfaces.
▪ Digitrax Easy Connect 9 Pin to 3” locomotive DCC Medium-Plug harness
▪ Series 7 Enhanced Decoder Features.
▪ Firmware may be user updated using a Digitrax USB equipped Command Station with Sound Loader software in decoder IPL mode.
▪ 2 Digitrax FX7 Functions-Control lights and functions for prototypical lighting effects and on/off control.
▪ Configurable FX7 Pulse Function available on all function outputs.
▪ Digitrax LocoMotion® System – Lets your trains run like the real thing!
▪ 2 Digit and 4 Digit Addressing.
▪ Basic, Advanced & UniVersal Consisting.
▪ SuperSonic motor drive for silent operation.
▪ Direct and Operations Mode programming.
▪ Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment. Decoder Reset by CV8, with or without speed table reset.
▪ Transponder Equipped ready for transponding ID and Operations Mode CV read-back when your layout is instrumented for Digitrax Transponding.
▪ Power-on Motor Isolation Protection, helps prevent damage to your decoder.
▪ DCC Compatible.
▪ FCC Part 15, Class B RFI compliant.
▪ Operates on DCC track voltage 9V minimum. to 22V maximum.
Parts List:
1 DH127D compact HO Mobile Decoder with 9-pin socket
1 Instruction Sheet
1 P-type 9-pin to 8-pin Medium-plug 3” harness
Digitrax “No Worries” Warranty
