Product Description
Supports 6 lighting functions (FL, RL, AUX1 and AUX2 are pre-wired, solder pads for AUX3 and AUX4 are provided). The two brown speaker wires are not provided, but there are solder pads for the speaker wires. The board is larger and has a mounting hole, this part of the board can be broken off to make the board smaller. It is 18mm x 9mm with the mounting tongue and 13mm x 9mm without it. Heat shrink tube is not provided.

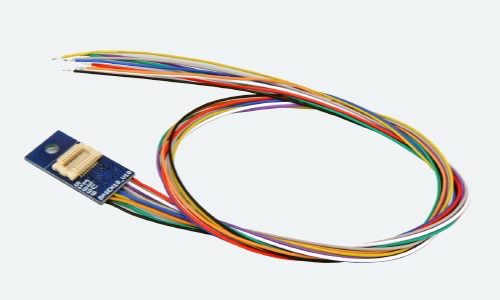

The Next18 adapter board is suitable if you want to digitize a very small locomotive without a digital interface, but do not want to freely wire the decoder. With dimensions of only 13.0 mm x 9.0 mm, the board is extremely small and also has a break-off fastening tab. For the functions AUX3 and AUX4, which are designed as logic outputs on the decoder according to the standard, power amplifiers (approx. 180mA each) are on board. A total of up to 6 outputs can be used. Already soldered connection cables with a length of approx. 20 cm for the most important contacts ensure easy handling and wiring.
Dimensions: Length 13.0 mm x 9.0 mm (With mounting tongue: 18.0 mm x 9.0 mm).
