Product Description

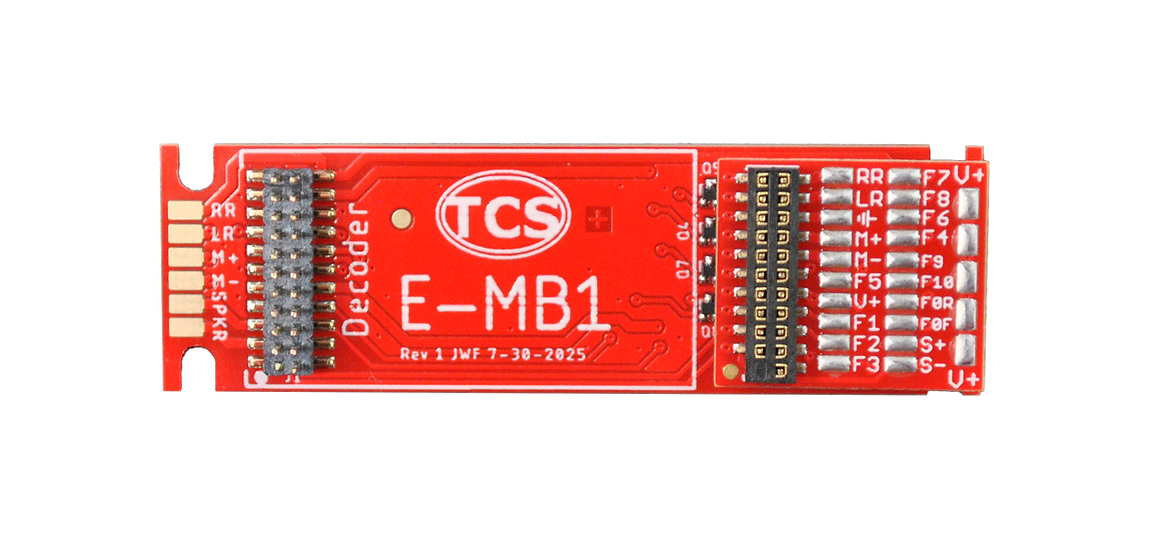

The Economy Motherboard permits the installation of a 21-pin decoder into a wide variety of models by replacing the original lighting board. It is designed to fit many locomotives from manufacturers such as InterMountain, Bowser, LifeLike, Bachmann, and Broadway Limited. This motherboard allows the use of up to 12 function outputs and includes on-board resistors for use with LEDs. The included adapter board unplugs to allow complete removal of the models’ shell.
NOTE: This product does not function without a 21-pin decoder. Decoder is not included
The E-MB1 has been designed to meet NMRA standards, and is compatible with any NMRA-compliant 21MTC decoder with 4 or more lighting outputs, such as TCS’ WOW121 or EU821 decoders (sold separately).
Dimensions: 2.19” x 0.67” x 0.26” or 55.6mm x 17mm x 6.63mm
- Scale: HO
- Outputs: 12
- Output Current: 100mA (each)
- Peak (Overall) 3.0 Amp
